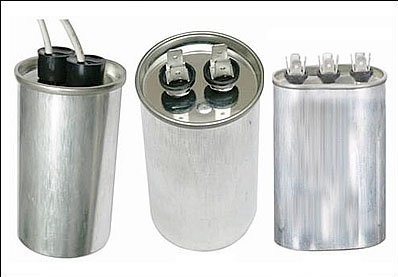

metallized bopp film capacitor for air conditioner ,motor
View Large
Product Name : metallized bopp film capacitor for air conditioner ,motor
Product Origin : China
Product Category : Polypropylene capacitors
More Products : Click here!
Contact Details : anhui safe
Product Code : cbb65
Product Details




Detailed Product Description



capacitor,AC capacitor,motor capacitor,AC motor capacitor,film capacitor,capacitor CBB65,CBB60,CBB61,film capacitor

1)Rated voltage:200V, 250V, 370V, 400V, 440V, 450V

2)The motor capacitor used in air-condition and high power illuminator

Features:

The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric. The elements are tight winded by high-velocity winders and canned in aluminum cases. Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor. Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors. The reliability is more affirmatively enhanced.

Applications:

Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for family air conditioners and high power illuminators for the sake of power factor compensation.

Technical Specifications:

Standard:IEC 60252-1:2001

Climate type:40/70/21 or 40/85/21

Capacitance tolerance:± 5%

I.R:≥3000S(MΩ·µF)

Dielectric dissipation factor:tgδ≤0.002 (50Hz~100Hz)

Application requirements:

Altitude:≤2000m

Residual voltage while loading: less than 10% of rated voltage.

Allowed maximum voltage: less than 1.1 times of rated voltage

Permissible maximum current: less than 1.3 times of rated current.

Dimensional specification (mm):





















Rated voltage(VAC)


Nominal capacitance(μF)


Size(mm)


D


H


200,250,370,

400,440,450


3,4,5,7.5,10,12.5,15,17,20,22.5,

25,30,35,40,45,50,55,60,70,80,100,

25+5, 30+5, 35+5, 50+5, 60+5, 70+5, 80+5…


40,45,50,55,

60,63.5,

52*32,71*45


60,65,70,75,80,85,90,95,100,105,110,115,

120,125,135,138


Product Attachment
File Name : CBB65 陈.jpg
File Size : 25.21KB     File Type : image/pjpeg
