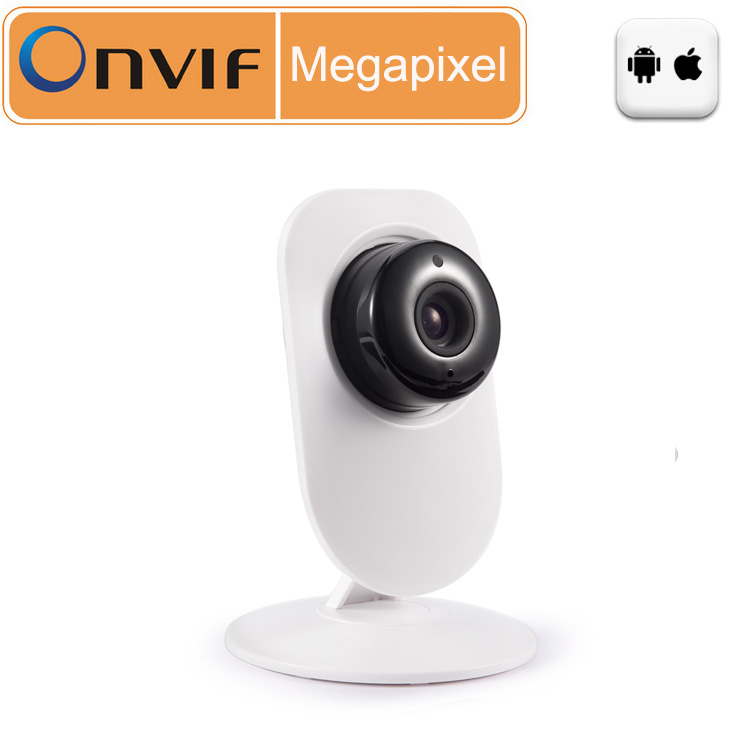

20pcs/lot 2015 New Arrival Alytimes Aly010 720P IR Cut Wifi wireless two way audio onvif HD IP camera support max 128GB TF card
View Large
Product Name : 20pcs/lot 2015 New Arrival Alytimes Aly010 720P IR Cut Wifi wireless two way audio onvif HD IP camera support max 128GB TF card
Product Origin : China
Product Category : Network/IP cameras
More Products : Click here!
Contact Details : Shenzhen Alytimes Technology Co., LTD
Product Code : aly010
Product Details









































































































































































System Main Processor Hisilicon processor,built-in ARM9 and a high-speed video co-processor.
Operating system Embedded Linux OS
Lmage Sensor Sensor High Definitioin Color CMOS Sensor
Display Resolution 1280*720 (1.0 Megapixel)
Min.Illuminatioin 0.1 Lux / F1.2 (With IR Illuminator)
Lens Lens Type Glass Lens
Lens Parameter   Focal Length3.6 mm;  ApertureF 2.4
Angle of View 90°
Video Image Compression H.264.
Image Frame Rate 30fps maxmium, downward adjustable
Resolution  720P(1280 x 720), VGA(640 x 360), QVGA(320 x 180)
Image Adjustment Automatic
Flip Mirror Image  Automatic (Built-in gravity sensing system, Auto filp mirror image)
Infrared Mode  Automatic
Night Visibility  6pcs IR-LEDs, night vision range up to 8 metres
Filter Switch(IR-Cut) Built-in IR Cut, no color deviation indoor or outdoor.
Audio Coding Standards G.711A.
Input / Output Supports two-way audio, Built-in Mic & Speaker
Record microSD Card Support 128G microSD Card.( only support FAT32 file system format)
Record Mode Alarm Record; Motion Detection Alarm Record; Timing video; Manual Record.
Record Standard VGA @ 25 fps
Playback Support remote playback.
Network Wireless Standard  IEEE 802.11 b/g/n,  Security support :WEP, WPA, WPA2 Encryption.
Online Visitor Online Visitor  LAN support 10 people, WAN support 5 people.
Onvif Support Onvif Protocol, Support NVR (above Onvif version 2.4.2)
Alarm Alarm  Supports Motion detection, Phone push, Email and Whistle alarm.
Others Product Type Plastic/ Indoor Use
DC  Power DC5V/1A..
Working Temperature 0~55 °C
Working Humidity 10%- 90% RH
Size Item size: 68mmx168x 110mm (LxWxH)
Packaging size:160mmx140mmx55mm(LxWxH)
Weight N.W.:150g        G.W.: 350g (Note:Actual Weight Final)
Accessories Adaptor, User Manual, USB Wire, Bracket,Screw.
System

Required
SmartPhone &  TablePC  Support iOS and Android system, Provide free App "APCam"
PC  Only support remote monitor on Internet Explorer(IE) browser.
Certification CE,FCC,RoHS
Warranty Limited 2-Year Warranty
Product Attachment
File Name : _MG_5813-1.jpg
File Size : 56.04KB     File Type : image/jpeg
20pcs/lot 2015 New Arrival Alytimes Aly010 720P IR Cut Wifi wireless two way audio onvif HD IP camera support max 128GB TF card
