PA1000 Single Phase AC Power Analyzer

The Tektronix PA1000 is a single-phase, single-channel power analysis solution that is optimized for fast, efficient, and accurate power consumption testing to international standards. It's compact size, DMM-like user-interface, graphical display, and powerful software enable users to quickly visualize, analyze, and document the power consumption efficiency of next-generation devices, including standby power measurements and harmonic analysis.

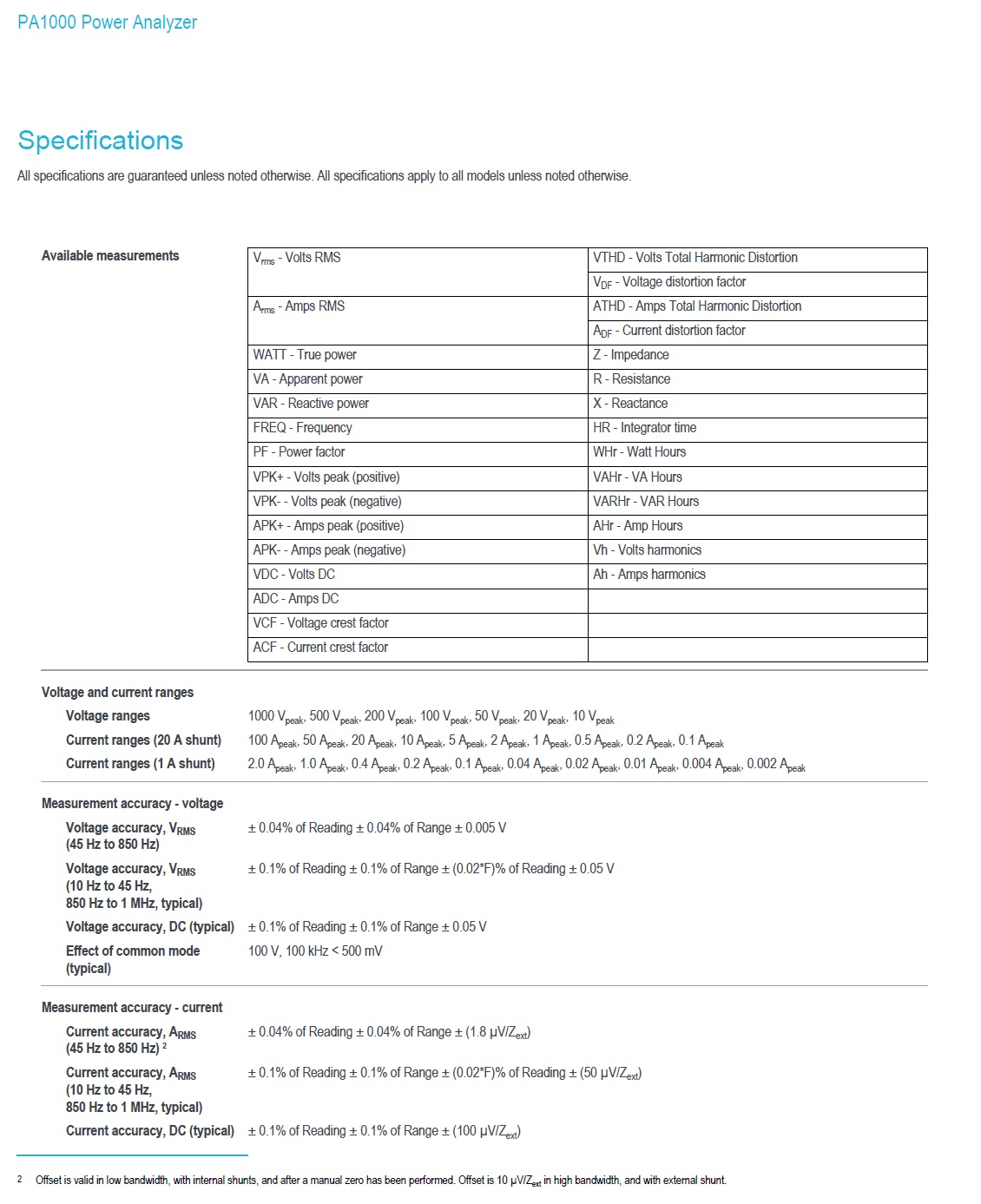

Key specifications

•1 MHz bandwidth

•5 mW standby power measurements

•Harmonic analysis to the 50th order (standard)

•+/- 0.04% basic accuracy

•20 µA to 20 Arms direct current input

•1 V to 600 Vrms (Cat II) voltage input

•USB, LAN, and GPIB interfaces (standard)

•Three-year warranty

Essential power measurement tool for the R&D bench

• Harmonic analysis to IEC/EN 61000-3-2 / 4-7 (pre-compliance testing to the 50th order)

• Standby power analysis to IEC 62301 / EN 50564 (full compliance testing as low as 5mW)

• Supports additional testing to CE, EnergyStar, CEC, SPEC Power® 1, CQC-3146, NOM-32-ENER-2013, and more

• Transient analysis with 1M sample/sec continuous sampling

•Measure voltage, current, power, VA, WHr, THD, PF, CF, and more

•Convenient front-panel banana jack inputs, color graphical display, and PWRVIEW software to simplify usage and boost productivity

•Optional breakout test box simplifies AC line connections between your device under test and the PA1000

1 Spec Power® is a registered trademark of the Standard Performance Evaluation Corporation (SPEC)

Applications

Power, energy, standby power, and harmonics measurements for:

• Power supply and UPS

• LED drivers / lighting

• Wireless charging

• Consumer electronics

• Home appliances

• Computers and IT equipment

• Inverters and converters

• Battery chargers
