Product Name : | RL3-421-G-2-BK/BK-P8 |
| Product Origin : | Hong Kong S.A.R., China | |
| Product Category : | ROCKER SWITCH | |
| More Products : | Click here! | |
| Contact Details : | 源豐電子有限公司 YUEN FUNG ELECTRONIC LTD. | |
| Product Code : | RL3-421-G-2-BK/BK-P8 |
Product Details
ROCKER SWITCH (船形開關)
ON-OFF 4P DPDT
UL / CUL / ENEC14 / CQC
(G): 6(2)A 250VAC T125/55 1E4
10A 125VAC
(H): 10(4)A 250VAC T125/55 1E4
10(2)A 250VAC T85/55 1E4
16A 125V/10A 250VAC 1/3HP
125-250VAC T105
ON-OFF 4P DPDT
UL / CUL / ENEC14 / CQC
(G): 6(2)A 250VAC T125/55 1E4
10A 125VAC
(H): 10(4)A 250VAC T125/55 1E4
10(2)A 250VAC T85/55 1E4
16A 125V/10A 250VAC 1/3HP
125-250VAC T105
Product Attachment

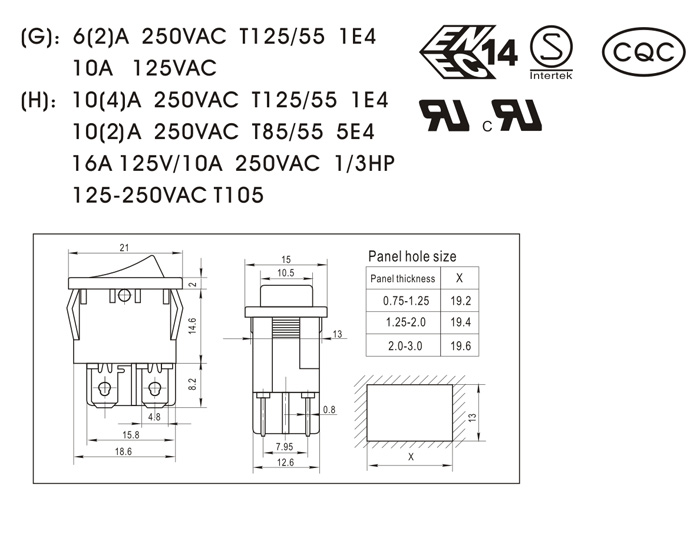

| File Name : RL3-421-G-2-BK-BK-P8 (DWG).jpg |
| File Size : 76.49KB File Type : image/jpeg |
