3.5mm Phone Jack 電話插掣
View Large
Product Name : 3.5mm Phone Jack 電話插掣
Product Origin : Hong Kong S.A.R., China
Product Category : Telephone plugs/sockets/jacks
More Products : Click here!
Contact Details : Sunny Development Co 新力發展公司
Product Code : TC38-380
Product Details

1. Dielectric Strength


   500 volts AC (50/60Hz) for 1 minute.


2. Insulation Resistance


   100 megohms Min. at 500 volts DC


3. Contact Resistance


   30 millohms Max. (Between Terminals)


   20 millohms Max. (Switch Part)


4. Mechanical


   0.4kg to 3.0kg (Insertion Force)


   0.4kg to 3.0kg (Extraction Force)


5. Life Test


   5,000 cycles of insertion and extraction


   at a rate 25 to 30 cycles per minute.

Product Attachment

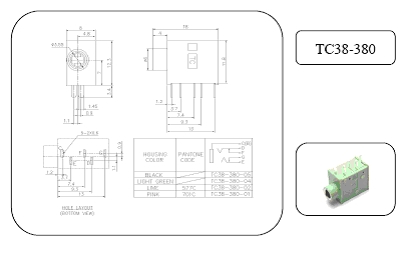

File Name : Clipboard09.jpg
File Size : 26.69KB     File Type : image/jpeg
