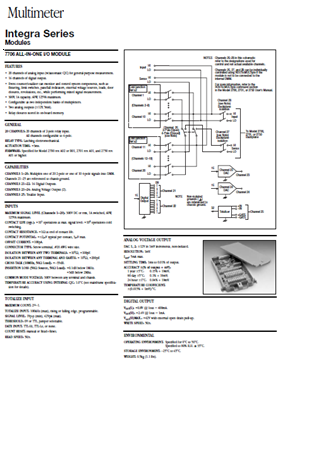

• 20 channels of analog input (w/automatic CJC) for general-purpose measurement.

• 16 channels of digital output.

• Event counter/totalizer can monitor and control system components, such as

fixturing, limit switches, pass/fail indicators, external voltage sources, loads, door

closures, revolutions, etc., while performing mixed signal measurement.

• 300V, 1A capacity; 60W, 125VA maximum.

• Configurable as two independent banks of multiplexers.

• Two analog outputs (±12V, 5mA).

• Relay closures stored in on-board memory.



* GENERAL

20 CHANNELS: 20 channels of 2-pole relay input.

All channels configurable to 4-pole.

RELAY TYPE: Latching electromechanical.

ACTUATION TIME: <3ms.

FIRMWARE: Specified for Model 2700 rev. A02 or B01, 2701 rev. A01, and 2750 rev.

A01 or higher.

CAPABILITIES

CHANNELS 1–20: Multiplex one of 20 2-pole or one of 10 4-pole signals into DMM.

Channels 21–25 are referenced to chassis ground.

CHANNELS 21–22: 16 Digital Outputs.

CHANNELS 23–24: Analog Voltage Output (2).

CHANNELS 25: Totalize Input.



* INPUTS

MAXIMUM SIGNAL LEVEL (Channels 1–20): 300V DC or rms, 1A switched, 60W,

125VA maximum.

CONTACT LIFE (typ.): >105 operations at max. signal level: >108 operations cold

switching.

CONTACT RESISTANCE: <1Ω at end of contact life.

CONTACT POTENTIAL: <±2μV typical per contact, 3μV max.

OFFSET CURRENT: <100pA.

CONNECTOR TYPE: Screw terminal, #20 AWG wire size.

ISOLATION BETWEEN ANY TWO TERMINALS: >109Ω, <100pF.

ISOLATION BETWEEN ANY TERMINAL AND EARTH: > 109Ω, <200pF.

CROSS TALK (10MHz, 50Ω Load): <–35dB.

INSERTION LOSS (50Ω Source, 50Ω Load): <0.1dB below 1MHz.

<3dB below 2Mhz.

COMMON MODE VOLTAGE: 300V between any terminal and chassis.

TEMPERATURE ACCURACY USING INTERNAL CJC: 1.0°C (see mainframe specification

for details).



* TOTALIZE INPUT

MAXIMUM COUNT: 232–1.

TOTALIZE INPUT: 100kHz (max), rising or falling edge, programmable.

SIGNAL LEVEL: 1Vp-p (min), 42Vpk (max).

THRESHOLD: 0V or TTL, jumper selectable.

DATE INPUT: TTL-Hi, TTL-Lo, or none.

COUNT RESET: manual or Read+Reset.

READ SPEED: 50/s.
