Product Name : | RL1-3(W)11/N-D(RE)-0-BK/BK-P2 |
| Product Origin : | Hong Kong S.A.R., China | |
| Product Category : | ROCKER SWITCH | |
| More Products : | Click here! | |
| Contact Details : | 源豐電子有限公司 YUEN FUNG ELECTRONIC LTD. | |
| Product Code : | RL1-3(W)11/N-D(RE)-0-BK/BK-P2 |
Product Details
ROCKER SWITCH (船形開關)
ON-OFF 3P SPST
W/ROUND LAMP (RED)
UL / CUL / ENEC14 / CQC
16(4)A 250VAC T125/55 1E4
15A 125VAC/7.5A 250VAC
(H): 16(8)A 250VAC T85/55 1E4
ON-OFF 3P SPST
W/ROUND LAMP (RED)
UL / CUL / ENEC14 / CQC
16(4)A 250VAC T125/55 1E4
15A 125VAC/7.5A 250VAC
(H): 16(8)A 250VAC T85/55 1E4
Product Attachment

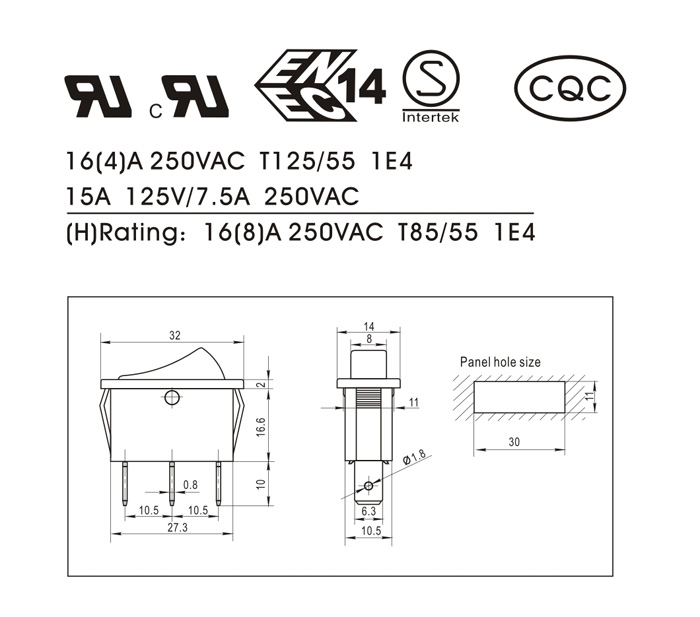

| File Name : RL1-3(W)00-A-0-RE-BK-P1 (DWG).jpg |
| File Size : 71.31KB File Type : image/jpeg |
