Product Details

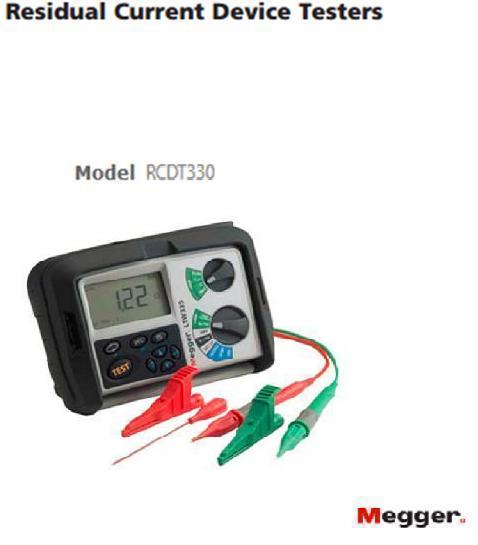

Residual Current Device Testers
電阻器電容器測試儀
Model : RCDT330
The Megger RCDT330 tester can perform 1/2I, 1xI and 5xI tests on RCDs rated at 10 mA, 30 mA, 100 mA, 300 mA, 500 mA & 1000mA on general and selective (time delayed) & programmable RCD's. Add this to the fact that you can download via USB up to 1000 test results with the supplied download manager software and you've got a RCD tester for every eventuality! The RCDT330's Data is stored in non volatile memory, being retained when the instrument is switched off or batteries are exhausted. A Job reference number (up to 256) can be selected, allowing separate locations to be tested with the RCDT330 and easily separated when downloaded. A memory bar graph acts as a ‘Fuel Gauge’ showing how much memory has been used. Test results are downloaded to CSV (Coma Separated Variable) spreadsheets. The RCD T330 is Meggers flagship downloadable RCD tester.
* Specification
RCD Test Ranges (to EN61557-6)
Supply voltage Supply:
RCDT330 50 V - 280 V 45 Hz to 65 Hz
Minimum voltage 71 V for 300 mA RCDs, 100 V for 500 mA RCDs and 205 V for 1000 mA RCDs
Test Current Accuracy:
No Trip Test: (1/2I) –8% to –2%
Trip Test: (I, 5I) +2% to +8%
Trip Time: ±1% ±1ms
Voltage measurement
(All Models)
Range ac: 0 V - 300 V 25 Hz to 450 Hz
Accuracy: ±2% ±2 digits
Frequency measurement
(RCDT330)
Range: 25 Hz to 450 Hz
Accuracy: 25.0 Hz to 199.9 Hz ±0.1 Hz
200 Hz to 450 Hz ±1 Hz
Fault (Touch) Voltage
Displayed range: 0 V to 50 V
Error: +5%/+15% ±0.5 V
Programmable RCD step Increments
10 mA to 50 mA - 1 mA steps
50 mA to 500 mA - 5 mA steps
500 mA to 1000 mA - 10 mA
steps
Test result storage (1000 results)
Job Number 256 locations
Distribution Board no. 99 locations
Circuits 99 locations
Phases P1, P2, P3
Last recorded result may be recalled to the display. All data can
be downloaded to a PC using Download Manager (supplied) or
Megger Powersuite Professional Windows software
Temperature and humidity
Operating Range: -5°C to +40°C
Operating Humidity: 93% R.H. at +40°C max.
Storage Range: -25°C to +70°C
Maximum altitude: 2000m
Environmental Protection: IP54
Communications
USB interface
Safety
Meets the requirements of IEC61010-1 Cat III 300 V phase to
earth.
IEC61557
Complies with the following parts of EN61557, Electrical safety
in low voltage systems up to 1000 V ac and 1500 V dcEquipment
for testing, measuring or monitoring of protective
measures:
Part1-General Requirements
Part4-Residual current devices
Power supply
Batteries: 8 x 1,5 V cells IEC LR6 type (AA alkaline).
Rechargeable: 8 x 1.2 V NiCd or NiMH cells.
Battery Life: 2000 consecutive tests
Weight
All units 980 gms
Dimensions
All units 203 x 148 x 78 mm
E.M.C. In accordance with IEC61326-1
