Product Name : | 兩線式溫度傳送器 Two Wire Temperature Transmitter - TT2W |
| Product Origin : | China Taiwan | |
| Product Category : | Chitai | |
| More Products : | Click here! | |
| Contact Details : | 運揚有限公司 WANCO LIMITED | |
| Product Code : | TT2W |
Product Details
兩線式溫度傳送器 Two Wire Temperature Transmitter - TT2W
The temperature transmitter Model: TT2W accept 0～100℃ (32～212℉) input and output a linearized 4 to 20 mA DC signals.
特性
‧ Combine sensor with main unit, test temperature directly.
‧ Test surface temperature or indoor temperature.
‧ Mini size, easy to install.
詳細規格
Accuracy
±0.1％＋sensor error±1℃
Operating temp. 0～60℃ (32～140℉)
Humidity range Up to 95% RH
Isolation Input/output
Mounting Wall mounting
Product Attachment

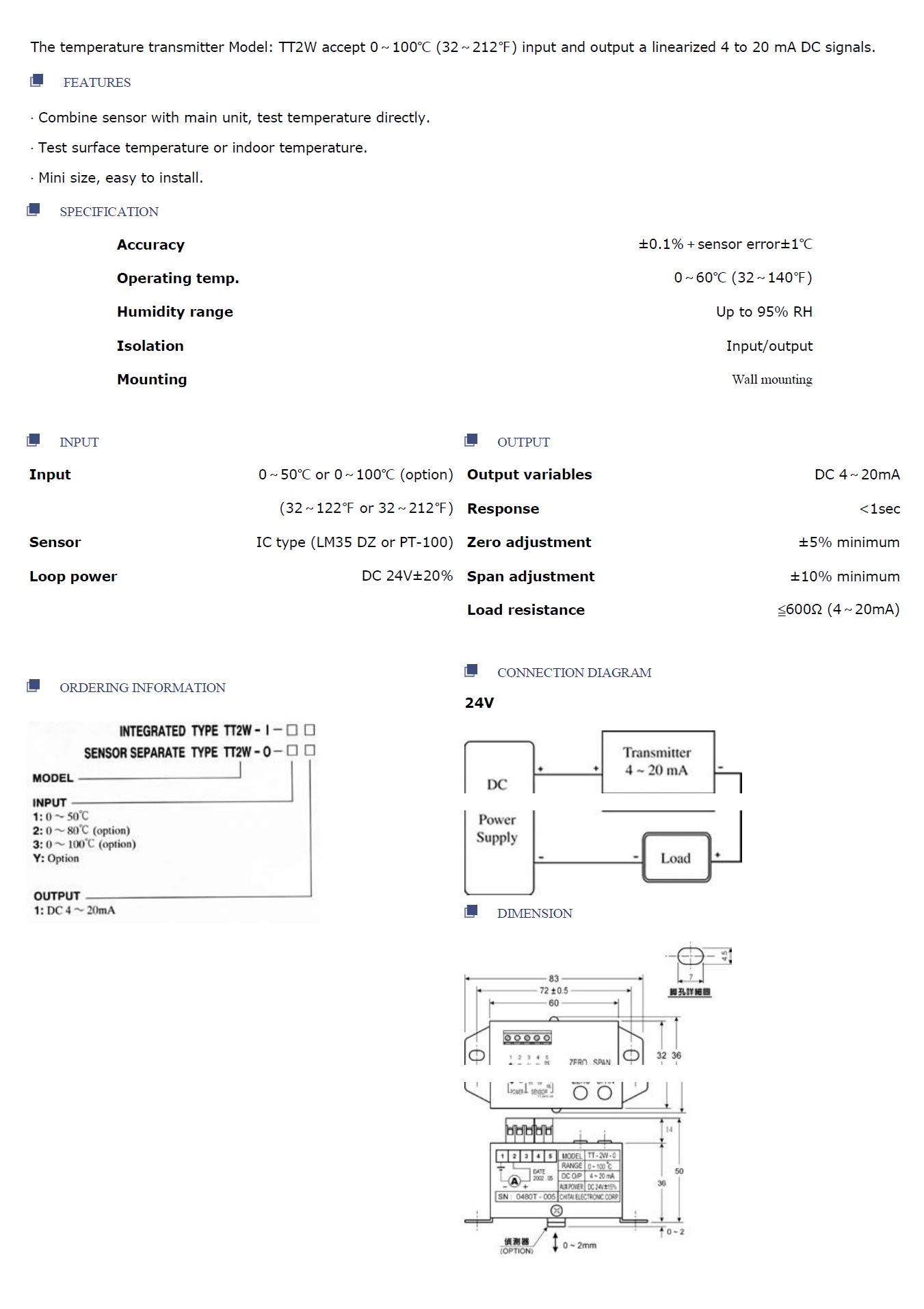

| File Name : ChiTai-MODEL TT2W SPEC.jpg |
| File Size : 267.83KB File Type : image/jpeg |
