Product Name : | pleated HEPA filter |
| Product Origin : | China | |
| Product Category : | Material handling conveyors & systems | |
| More Products : | Click here! | |
| Contact Details : | Guangzhou Clean-Link Filtration Technology Co.,Ltd | |
| Product Code : | CHS |
Product Details
Using; Applied to the terminal filtration fo the air-conditon filtraton system
Used in hospital ,electronic industry, food , precision instrument, electron semiconductors
Speciality:
l Waveness aluminium foil pleat or the paper pleat can make use of the filtration material completely. The thickness of the aluminum foil is 0.03 mm, the height of the waveness is 4mm, which make sure of the filtration area and the quality of the filter.
l The filtraion material is the high density paper which is made from super fine fibreglass. Pleat the filtration paper ( made from the fiberglass) in order to enlarge the filtration area as large as possible and to slowdown the filtration speed. It is very important for the HEPA filter.
l laser testing one bye one; Temp. resistance up to 80℃; Small resistance; Long service life
Waveness aluminium foil pleat or the paper pleat
type | Outside size W*H*D(mm) | Rated air flow | Initial resistance | Filtration efficiency |
CHS | 320×320×220 | 500 | ≤220Pa | ≥99.99 (Sodium flame) |
484×484×150 | 700 | |||
600×600×150 | 800 | |||
484×484×220 | 1000 | |||
610×610×150 | ||||
820×600×150 | 1200 | |||
630×630×220 | 1500 | |||
915×610×150 | ||||
820×600×200 | ||||
968×484×220 | 2000 | |||
1220×610×150 | ||||
1260×630×220 | 3000 |
Remarks: The size can made based on customer’requiremen

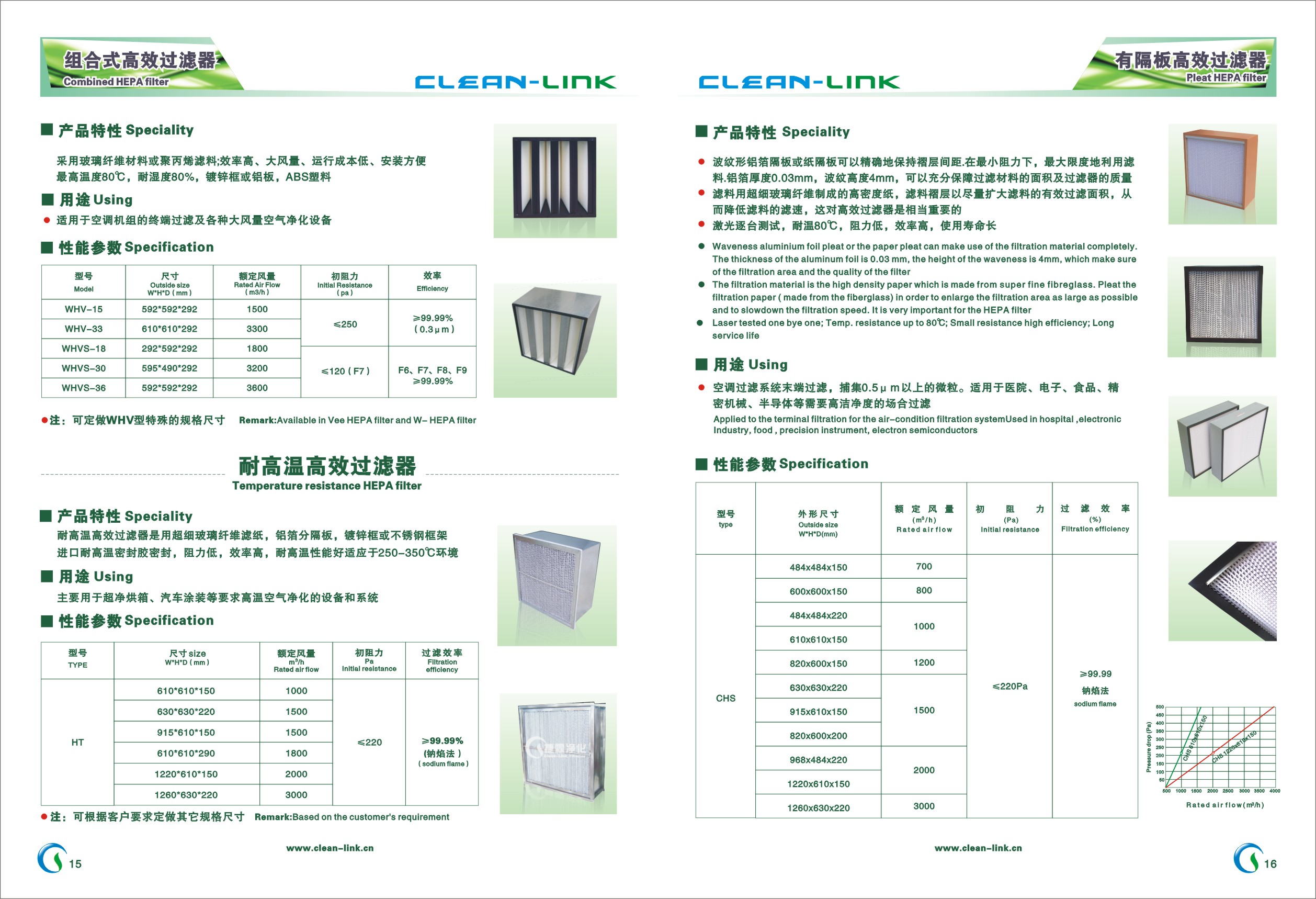

Product Attachment
