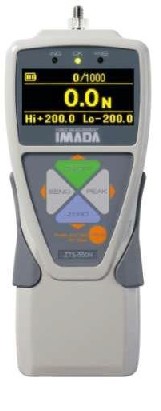

普通型数字测力计  Standard Model Digital Force Gauge

IMADA ZTS Series (系列)

用途及特点

再现程度较高的标准型测力计兼具使用简便性及机械性。

从峰值测定到再现程度较高的测定，可用于多种测定。

附带便于数据管理的数据读取软件。

最大负载

2N～1000N



(200gf～100kgf)

Specifications for ZT series Standard Model Digital Force Gauge

  Model               Range                               Display                             Resolution

ZTS-2N           2N (200gf)           2.000N/2000mN (200.0gf)           0.001N/1mN (0.1gf)

ZTS-5N           5N (500gf)           5.000N/5000mN (500.0gf)           0.001N/1mN (0.1gf)

ZTS-20N         20N (2kgf)                   20.00N (2.000kgf)                   0.01N (0.001kgf)

ZTS-50N         50N (5kgf)                   50.00N (5.000kgf)                   0.01N (0.001kgf)

ZTS-100N      100N (10kgf)               100.0N (10.00kgf)                     0.1N (0.01kgf)

ZTS-200N      200N (20kgf)               200.0N (20.00kgf)                     0.1N (0.01kgf)

ZTS-500N      500N (50kgf)               500.0N (50.00kgf)                     0.1N (0.01kgf)

ZTS-1000N    1000N (100kgf)    1000N/1.000kN (100.0kgf)           1N/0.001kN (0.1kgf)

lbf indication is also possible.
