融合 Fluke 289 和 FlukeView Forms 组合套件，最大限度地提高工作效率。

通过内置数据记录仪和趋势捕获功能， 289 型可以在用户执行其他工作时帮助用户监控设备，

从而跟踪难以捕获的间歇性问题。 综合来自六个检测仪或六个时间段的数据记录，方便查找原因和影响关系，或查找用于在 FVF 软件中监控应用场合的条件。

可将数据转换成直观的图形和表格，让用户轻松制作专业报告。 289/FVF 组合套件提供了一种经济且实用的预防性维护方案，而且随附软包 (C280)。

=================================================================

Key Features Include:

NEW – Large 50,000 count, ¼ VGA display with white backlight. Multiple sets of measurement information can simultaneously displayed at the same time.

NEW - Logging function with TrendCapture is an essential tool for documenting the performance of your designs, processes or systems, monitoring unattended while you work on other projects. It plots measurements as a single line to help detect signal anomalies over time, storing up to 10,000 readings. Using on-board TrendCapture, you can graphically view logged readings without a PC. (Software and interface cable optional).

NEW – Log multiple sessions or log data continuously for over 200 hours. This is useful for characterizing the performance of a design or for unattended monitoring.

 NEW - i-info button on board help screens for measurement functions. Unsure about a function? Go to that function and Press the “i button.

NEW – LoZ Volts. Low impedance voltage function prevents false readings due to “ghost voltage. It is also the recommended mode when testing for absence or presence of live power.

New – Low Pass Filter for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment.

50 ohm range – useful for measuring and comparing differences in motor winding resistance, low ohm measurements, or other contact resistance. Two terminal 50 ohm range with 1 milliohm resolution, 10 mA source current.

NEW – Saved measurements allow you to name and recall measurements made in the field

Real Time Clock – for automatic time stamping of saved readings

NEW - Field upgradeable and expandable meter lets you stsay current as new capabilities are added

NEW - Multi-lingual interface

Min/Max/Average with Time Stamp to record signal fluctuations

Soft keys, scroll buttons and easy navigation control access to secondary functions. Create custom displays too.

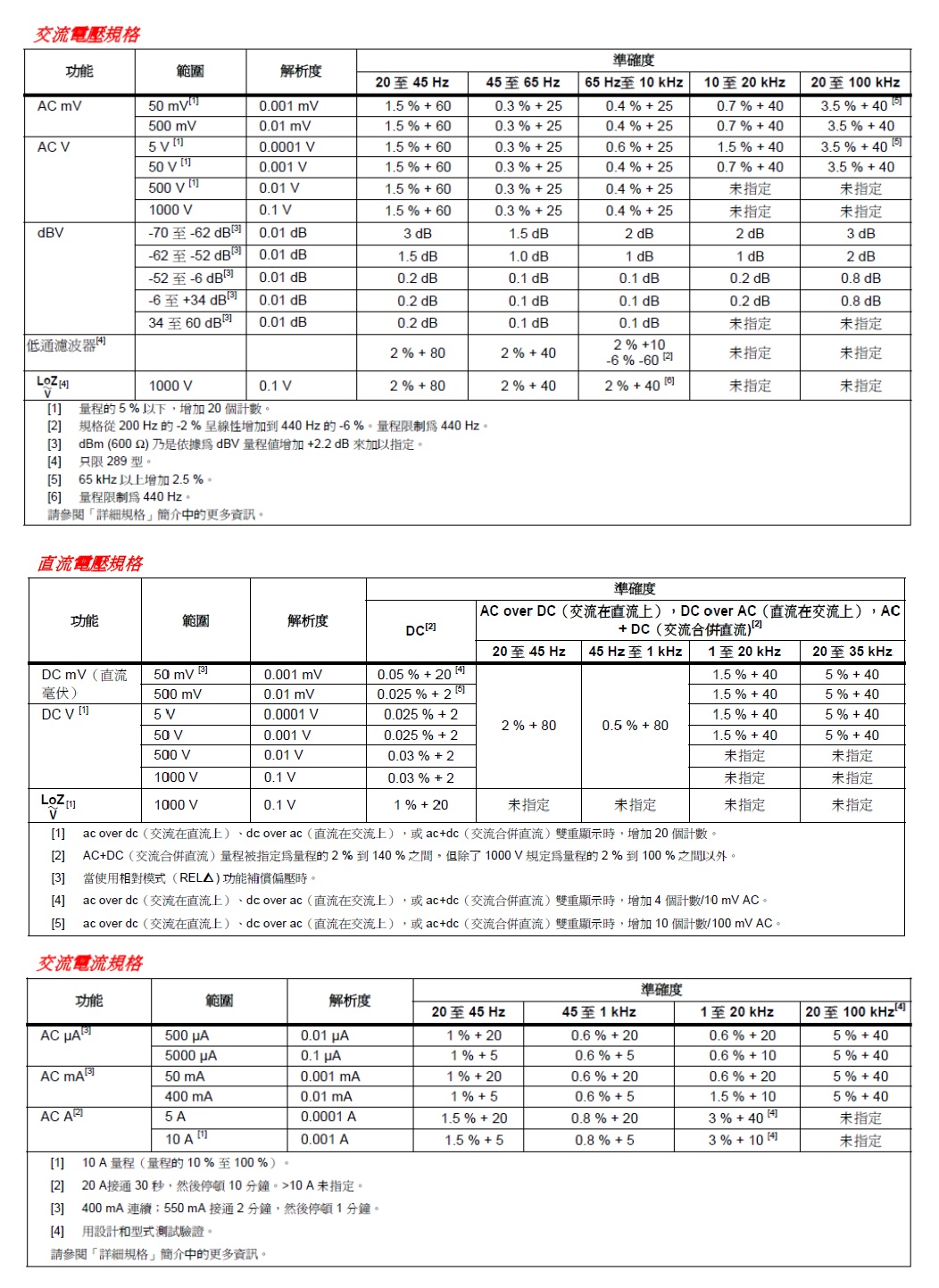

0.025% Basic DC accuracy

100 kHz ac bandwidth

True-rms ac voltage and current for accurate measurements on complex signals or non-linear loads.

Measure up to 10A (20 A for 30 seconds; 10A continuous)

100 mF capacitance range
