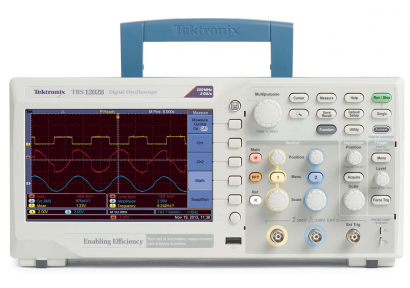

TBS1000B 系列數位示波器

The TBS1000B Series is the only 2-channel oscilloscope in its class that is designed for extensive monitoring and analysis activities. Versatile features like 34 automated measurements, up to 200 MHz bandwidth, limit testing, data logging, dual channel frequency counters, waveform trending and up to 2 GS/s sample rate puts the TBS1000B in a class all its own.

---------------------------------------------------------------------------------------------------------------------

The TBS1000B Digital Storage Oscilloscope Series provides you with affordable performance in a compact design. Packed with standard features - including USB connectivity, 34 automated measurements, limit testing, data logging, frequency counter, TrendPlot™ and a context-sensitive help menu - the TBS1000B Series oscilloscopes helps you get more done, in less time.

Key performance specifications

•


  200MHz, 150 MHz, 100 MHz, 70 MHz, 50 MHz, and 30 MHz ¹ bandwidth models





• 2-channel models


•


  Up to 2 GS/s sample rate on all channels





• 2.5k point record length on all channels


• Advanced triggers including pulse and line-selectable video triggers

¹ 30 MHz model available only in North America and Europe.

Key features

•


  7 inch WVGA (800X480) Active TFT Color Display





•


  34 automated measurements





• Dual window FFT, simultaneously monitors both the time and frequency domains


•


  Built-in waveform limit and TrendPlot™ testing





• Dual channel frequency counter


• Zoom Function


• Automated, extended data logging feature


• Autoset and auto-ranging functions


• Built-in context-sensitive help


• Multiple-language user interface


• Small footprint and lightweight - Only 4.9 in. (124 mm) deep and 4.4 lb. (2 kg)

Connectivity

• USB 2.0 host port on the front panel for quick and easy data storage


• USB 2.0 device port on rear panel for easy connection to a PC

Seeing signal details

To properly analyze signals you need to make sure that you can see them in enough detail. The TBS1000B comes standard with a 7-inch high resolution TFT display for a clear view of all of your signals and critical on screen information. The instrument is further enhanced by a user interface inspired by the award winning Tektronix MSO/DPO series of instruments. The interface is easy to use, provides quick access to all of the oscilloscope functions and includes a high resolution "Pan & Zoom" feature enabling you to see even more signal details of up to 10 times normal resolution.
